Publication: Association for Computer Aided Design in Architecture (ACADIA)
Publication Type: Conference Proceedings
Conference Location: Ann Arbor, Michigan.

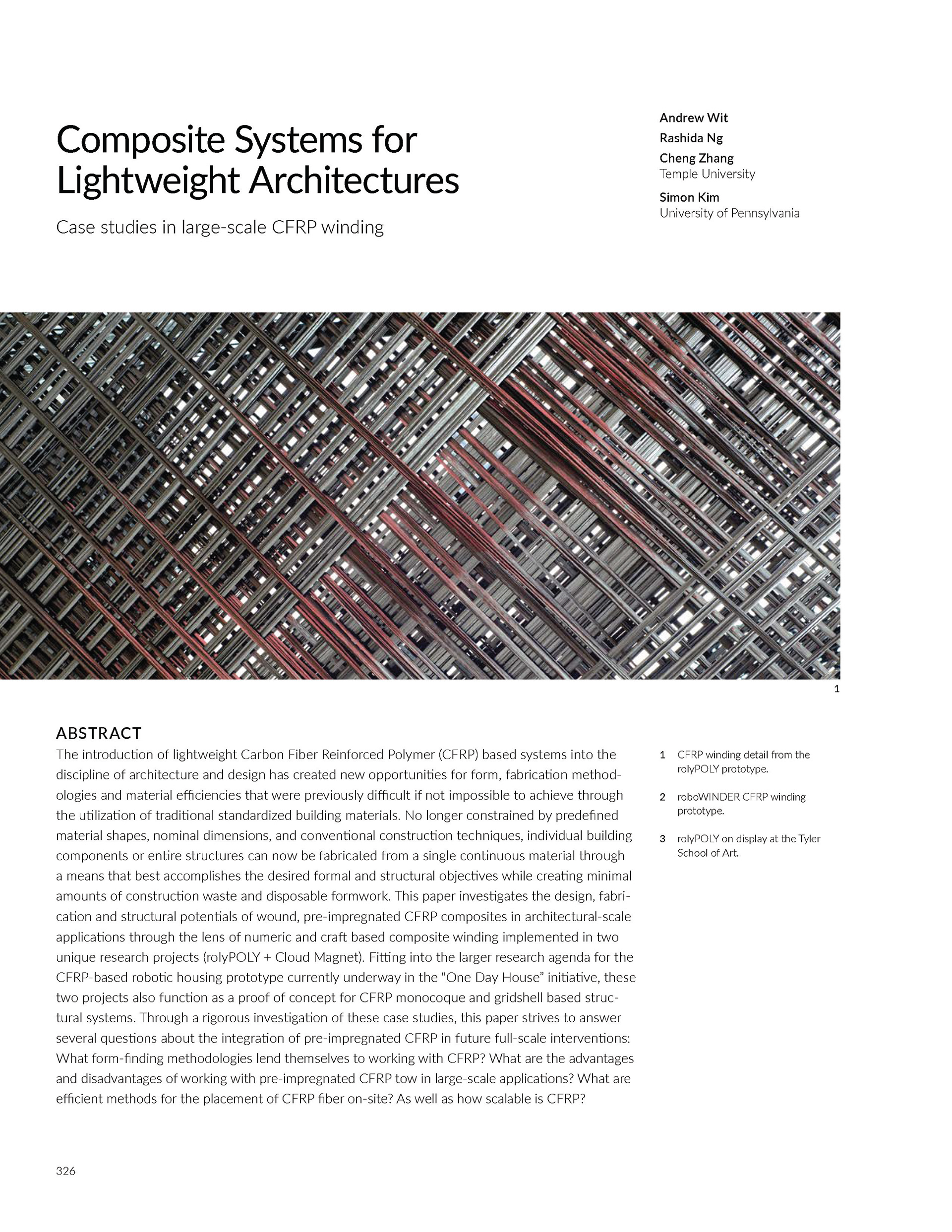

Article Title: Composite Systems for Light-weight Architectures
Authors: Andrew John Wit,​​​​​​​ Rashida Ng, Chang Zheng + Simon Kim
Publication Date: October, 2016
Page Number: 326-331
Publication Link

Abstract: The introduction of lightweight Carbon Fiber Reinforced Polymer (CFRP) based systems into the discipline of architecture and design has created new opportunities for form, fabrication methodologies and material efficiencies that were previously difficult if not impossible to achieve through the utilization of traditional standardized building materials. No longer constrained by predefined material shapes, nominal dimensions, and conventional construction techniques, individual building components or entire structures can now be fabricated from a single continuous material through a means that best accomplishes the desired formal and structural objectives while creating minimal amounts of construction waste and disposable formworks. This paper investigates these design, fabrication and structural potentials of wound, pre-impregnated CFRP composites in architectural-scale applications through the lens of numeric and craft based composite winding implemented in two unique research projects (rolyPOLY + Cloud Magnet). Fitting into the larger research agenda for the CFRP based, robotic housing prototype currently underway in the “One Day House” initiative, these two projects also function as a proof of concept for CFRP monocoque and gridshell based structural systems. Through a rigorous investigation of these case studies, this paper strives to answer several questions about the integration of pre-impregnated CFRP in future full-scale interventions: What form-finding methodologies lend themselves to working with CFRP? What are the advantages and disadvantages of working with pre-impregnated CFRP tow in large-scale applications? What are efficient methods for the placement of CFRP fiber on-site? As well as how scalable is CFRP?
