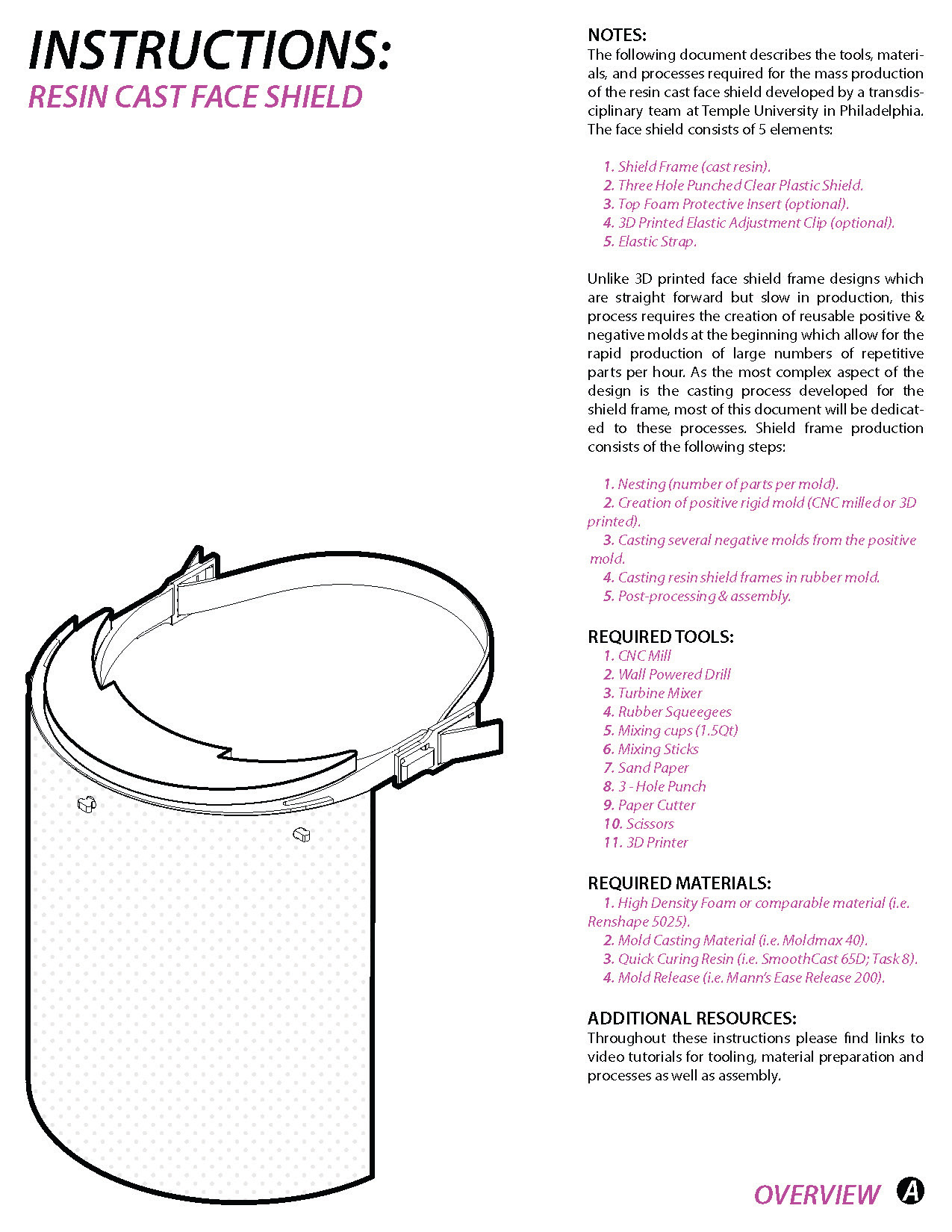

Project Title: Resin Cast Face Shield
Principal Investigators: Andrew John Wit + Tim Rusterholz (Resin Cast PPE Production Process / Design). In collaboration w/ Temple University
Status: Complete. Spring 2020
DRAWINGS / Presentation / IMAGES: Andrew John Wit
DESCRIPTION: At the start of the COVID 19 Pandemic, Andrew John Wit & Tim Rusterholz were asked by the researchers at Temple University to develop a rapid, digitally fabricated method for the production of PPE equipment to replace their current 3D printing methodology.

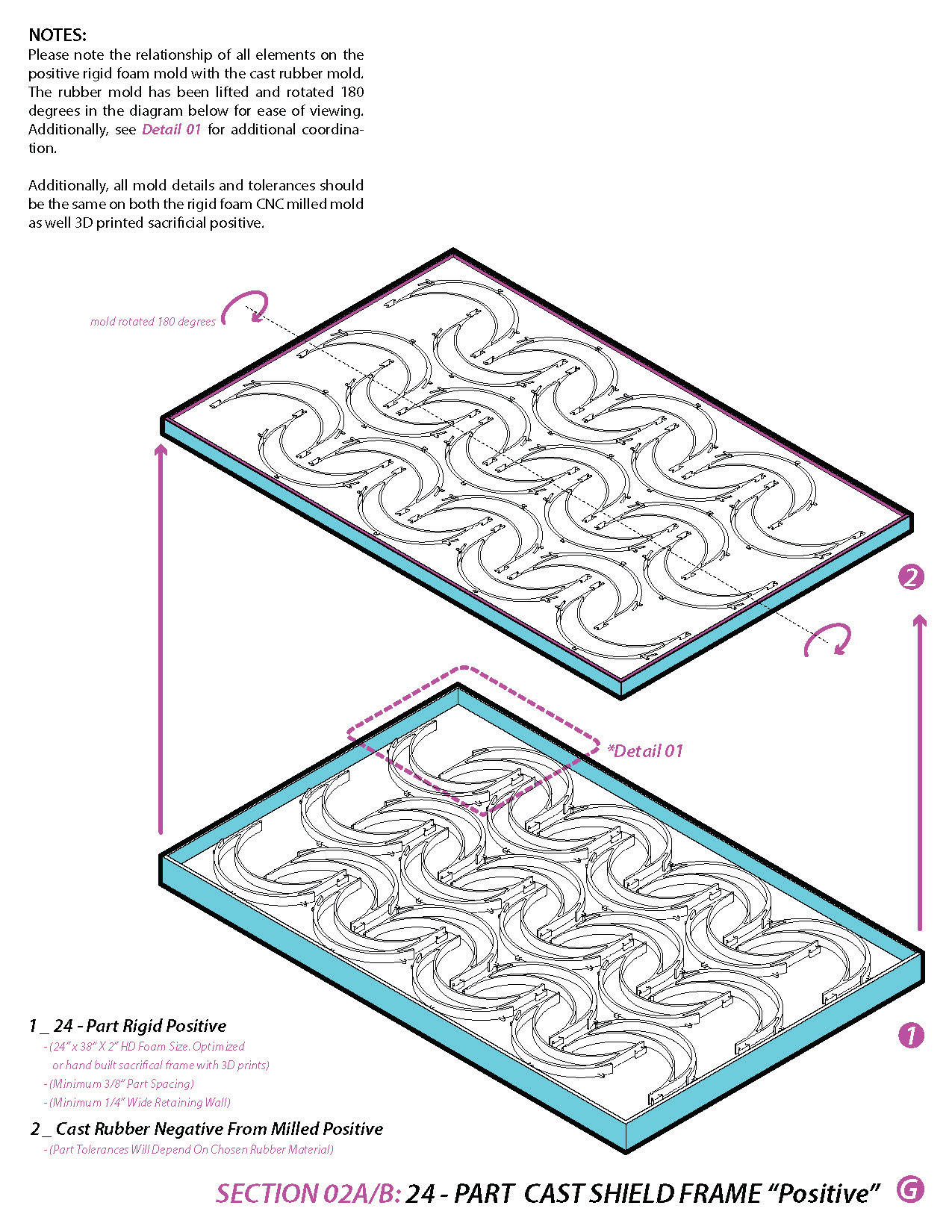

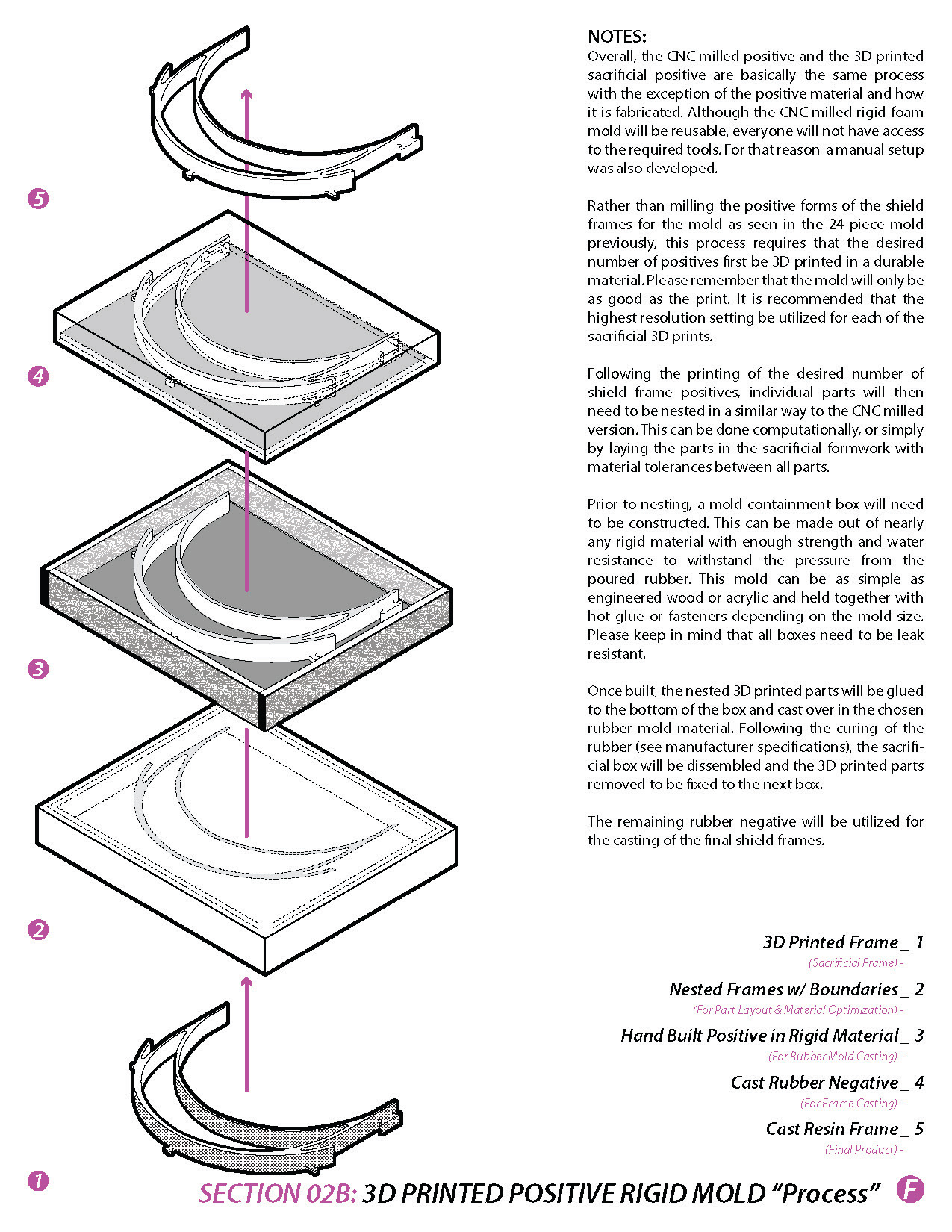

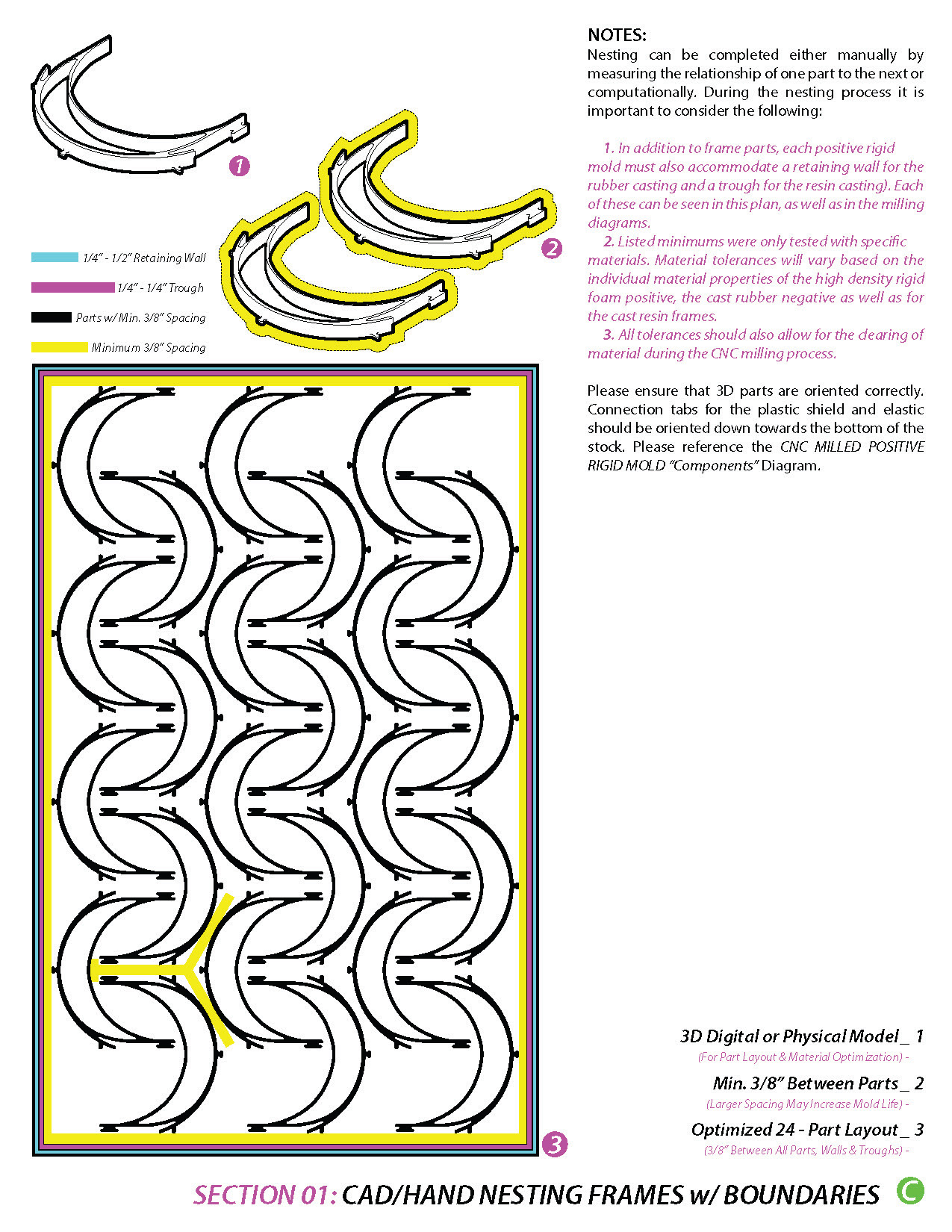

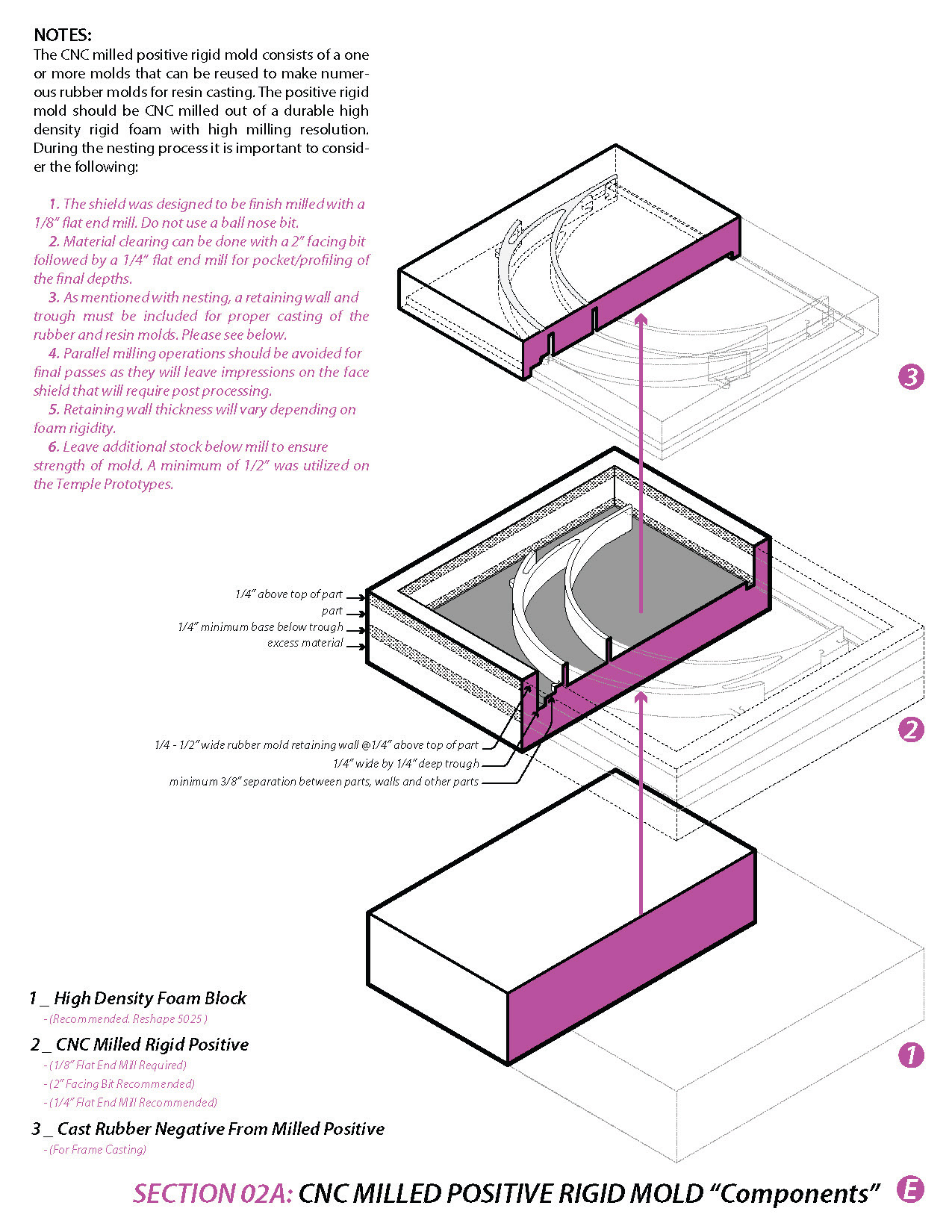

Over the course of several weeks, Wit & Rusterholtz designed, prototyped, and produced a rapid fabrication system through CNC milling that was used for the resin cast face shields that were mass produced by the university.
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/0a04b802-899b-4f16-a759-ea62c4e8c3e3_rw_1920.jpg?h=a030630d95cd9035c1f2fd0384339346)
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/1ee5b8d7-27eb-478c-87ce-4043fe9b565b_rw_1920.jpg?h=1801adce5fbda7b3da1a72fabc2595f5)
Back Cover @ Nagesh Shinde
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/863ba22d-1a4f-4e6e-a8fa-96c7005d1ec0_rw_1920.jpg?h=f60d67f2f217564becb3407bde697e83)
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/66d47f4c-0945-431f-80d2-216cf129a68d_rw_1920.jpg?h=946eadac01a02c8895f5d94a07ead766)
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/0f49f216-e22b-44c9-989a-cba50ccc6fca_rw_1920.jpg?h=1ece51ba77e2950971625f74f4ef4dbf)
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/7f56a8b2-a485-437e-aa2a-ea5427c80076_rw_1920.jpg?h=1cc465a40ddf1346b1db18abf47a899b)
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/533b5bc5-c82a-4db7-9e75-a0096c58c2de_rw_1920.jpg?h=ee86580f6cfc6d113e043acd794702ff)
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/c5149864-0a5e-45b7-9dab-d66260589da5_rw_1920.jpg?h=396ac41be53951636eacf761fb02f18c)
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/cc5656d6-c401-46c9-a860-489b9deb4d75_rw_1920.jpg?h=dfff1d94cb5b847fdc75cb404bc818bb)
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/aaa08b21-e273-424a-8478-fbbc9c0c1867_rw_1920.jpg?h=965ec8a34b88f7cbef50ea27571c4ac1)
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/c814cbe3-548f-4d77-99d0-4d73f1e78b9c_rw_1920.jpg?h=0fa9322b23b6c8324cdbd1979af000c8)
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/c6cf9841-a345-4336-9189-f6d7645e87fe_rw_1920.jpg?h=811c8612a7eee51a9b79d7c19909455a)
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/6bbc365e-366e-466b-8f91-37a55e83eaa8_rw_1920.jpg?h=271bb66df7ef8387e8093b434df36e46)
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/37645ac7-9623-46d9-81ee-2f86ae5e6ad2_rw_1920.jpg?h=9ad86b0d6fe945f001b50bb1612a317e)

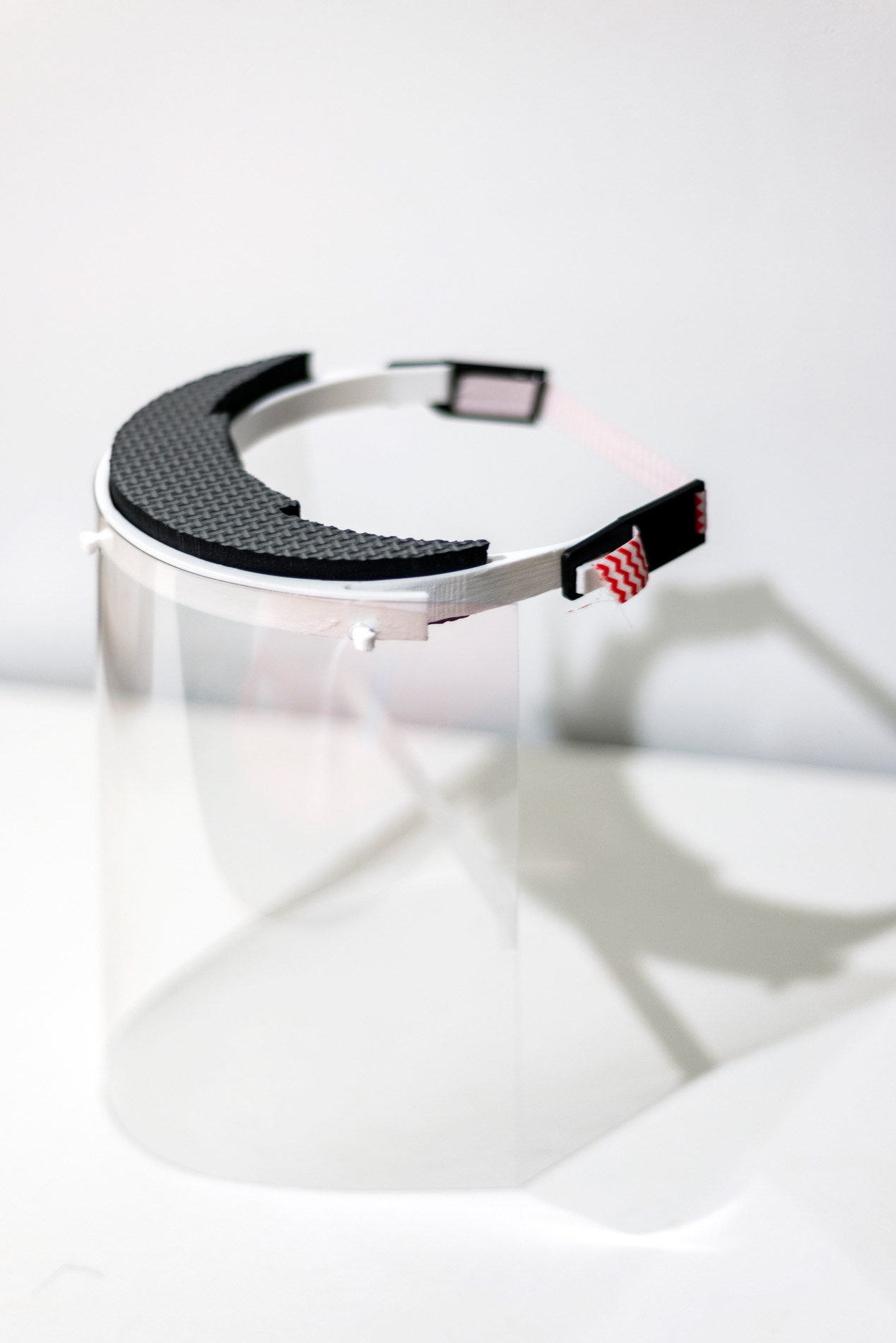

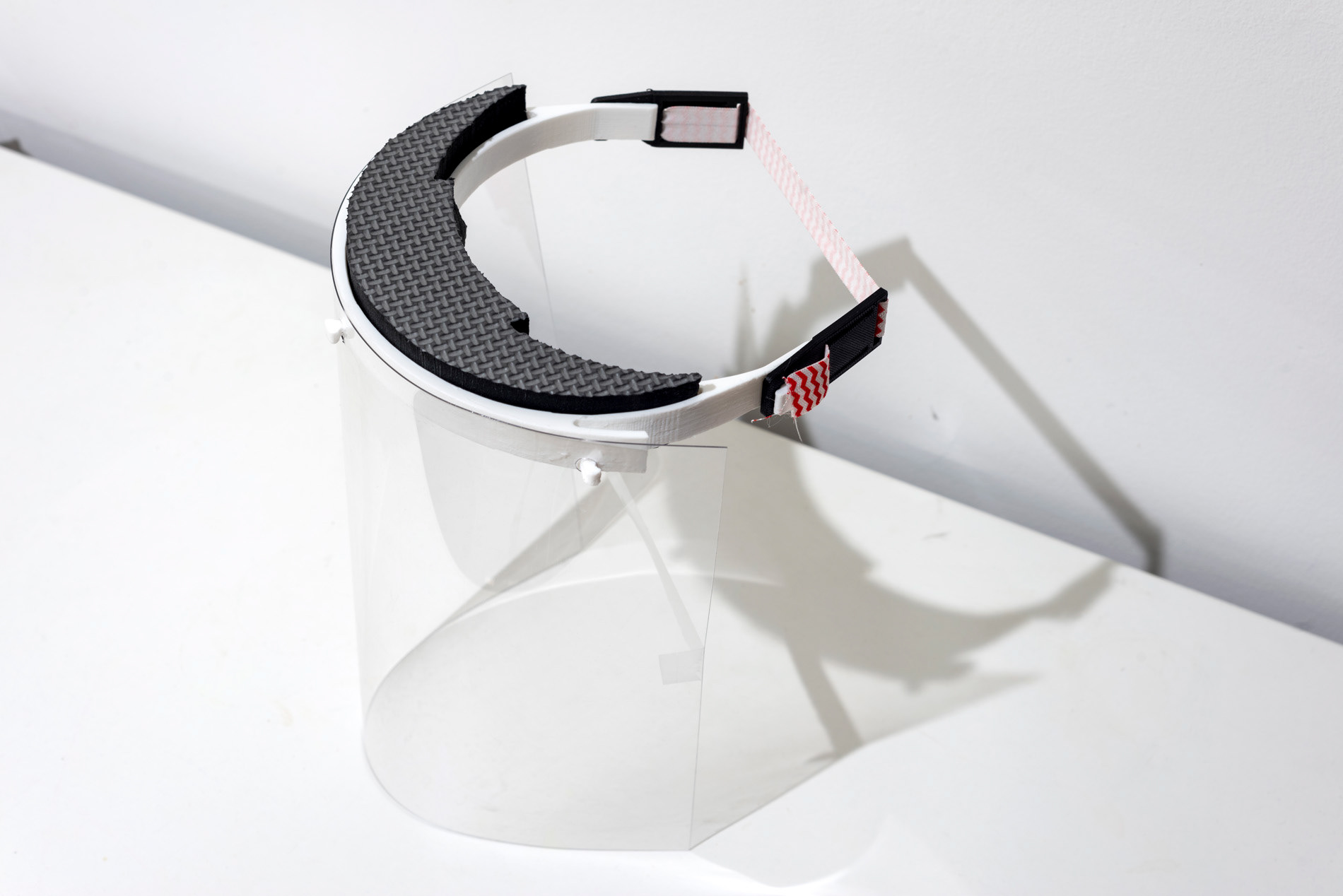

Face Shield. Completed w/ Temple University
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/1ec85e99-5050-4f7b-819a-817c8e3edd83_rw_1920.jpg?h=7a0a75d7c066b23b8840175d07dbc9c2)

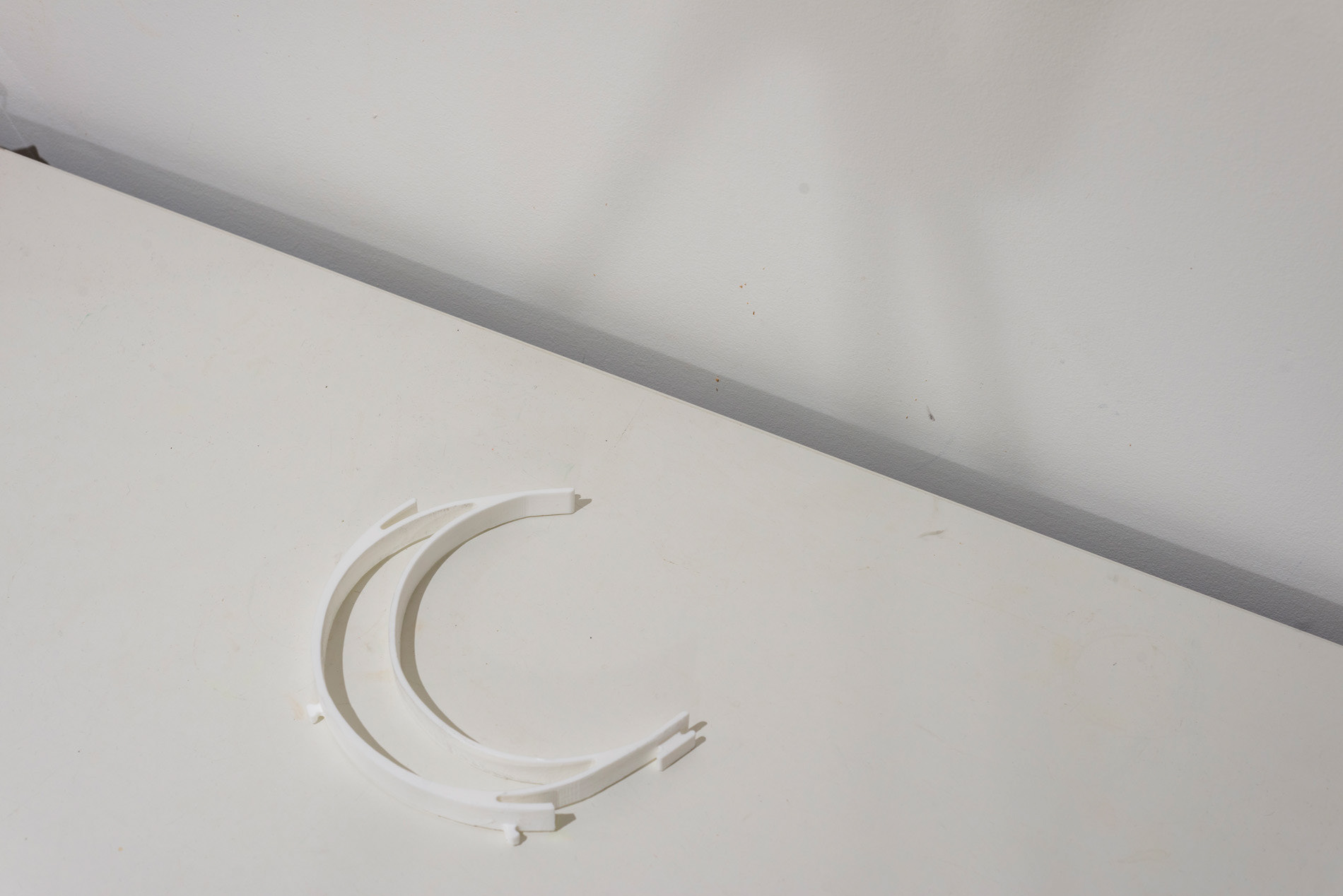

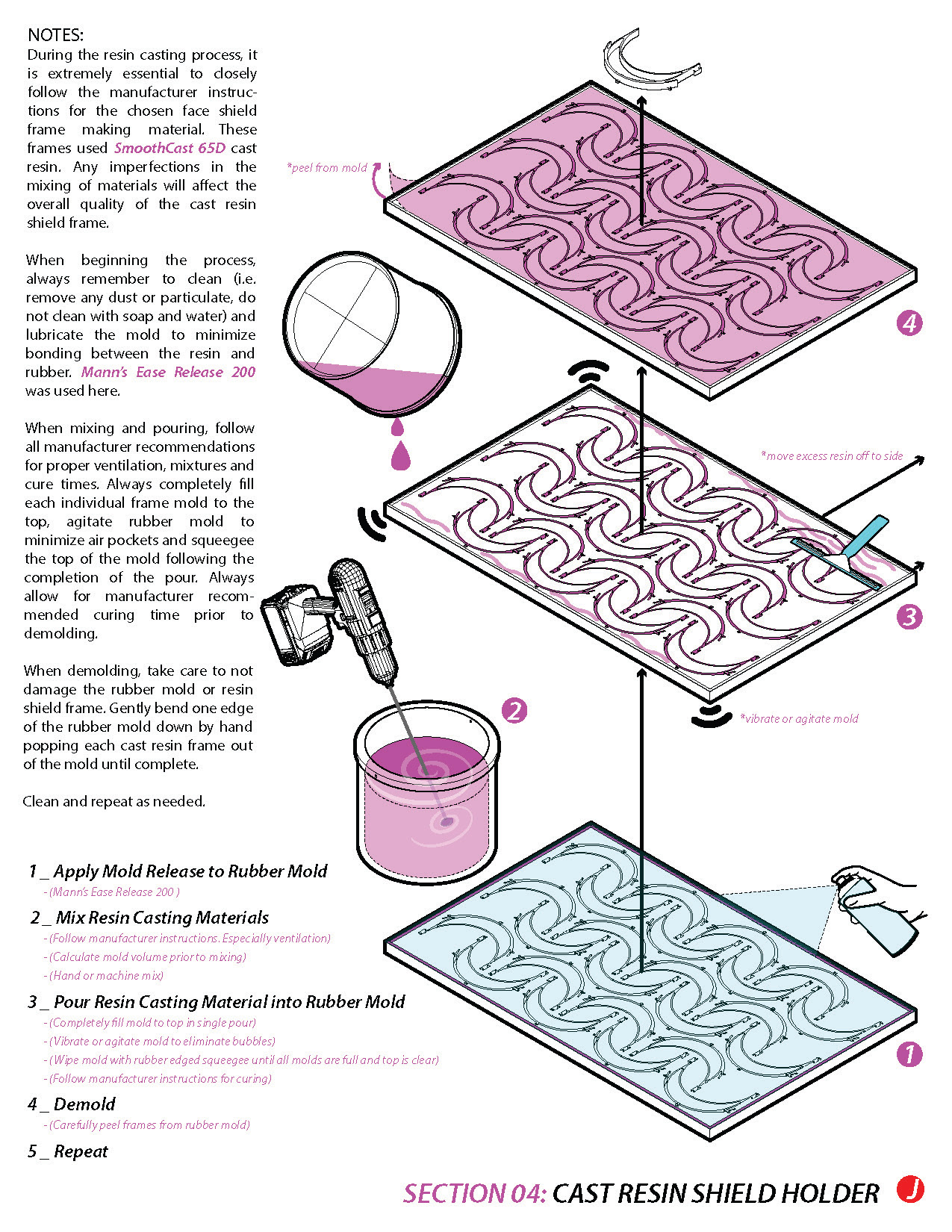

Cast Face Shield Frame
![](https://cdn.myportfolio.com/1b04a81d-9a2f-40c0-9c57-9e2d5e047a95/b02a4bc9-f861-4922-a48e-e6b33187b06b_rw_1920.jpg?h=0943110e5ea9d818271d9bdd62ace809)

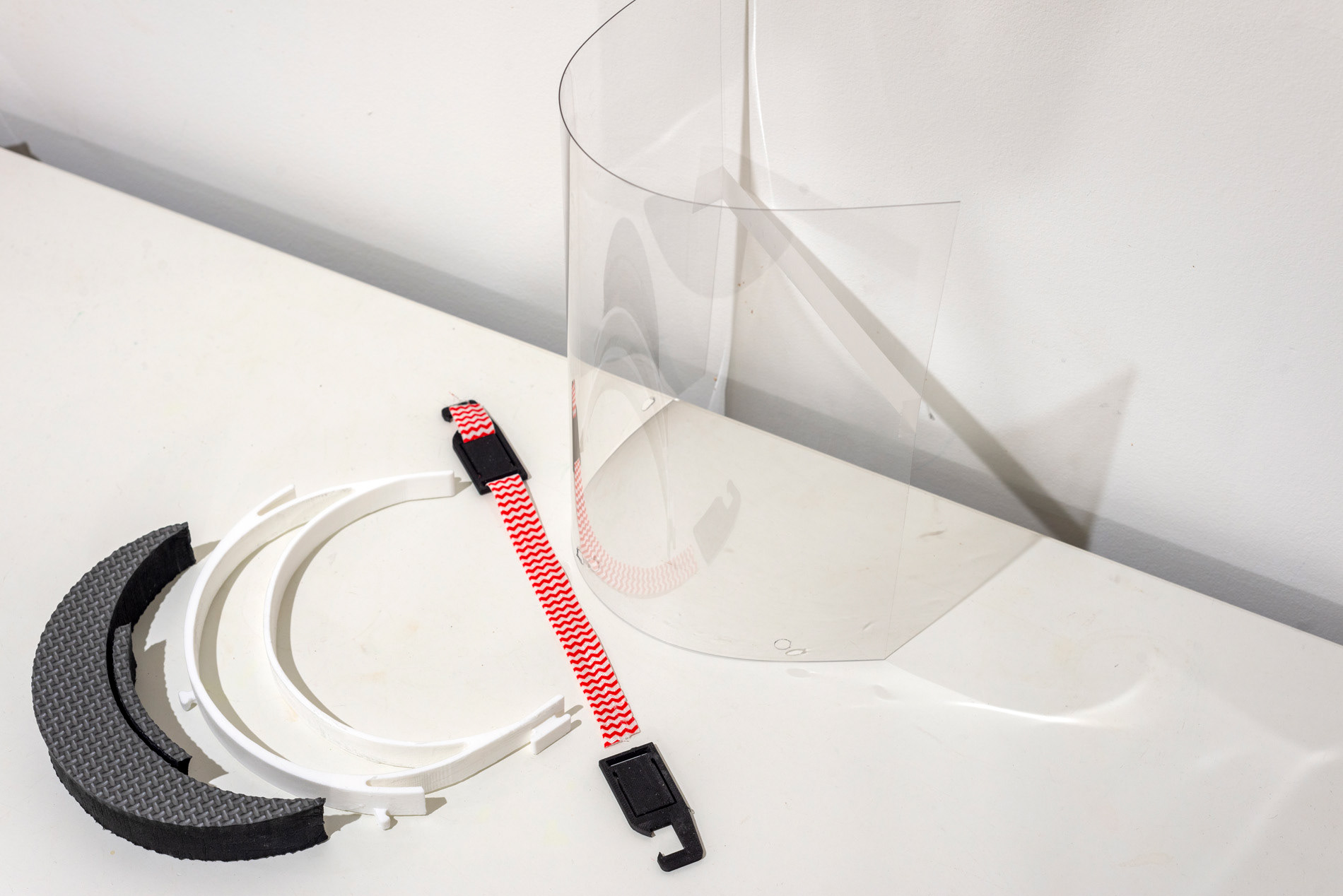

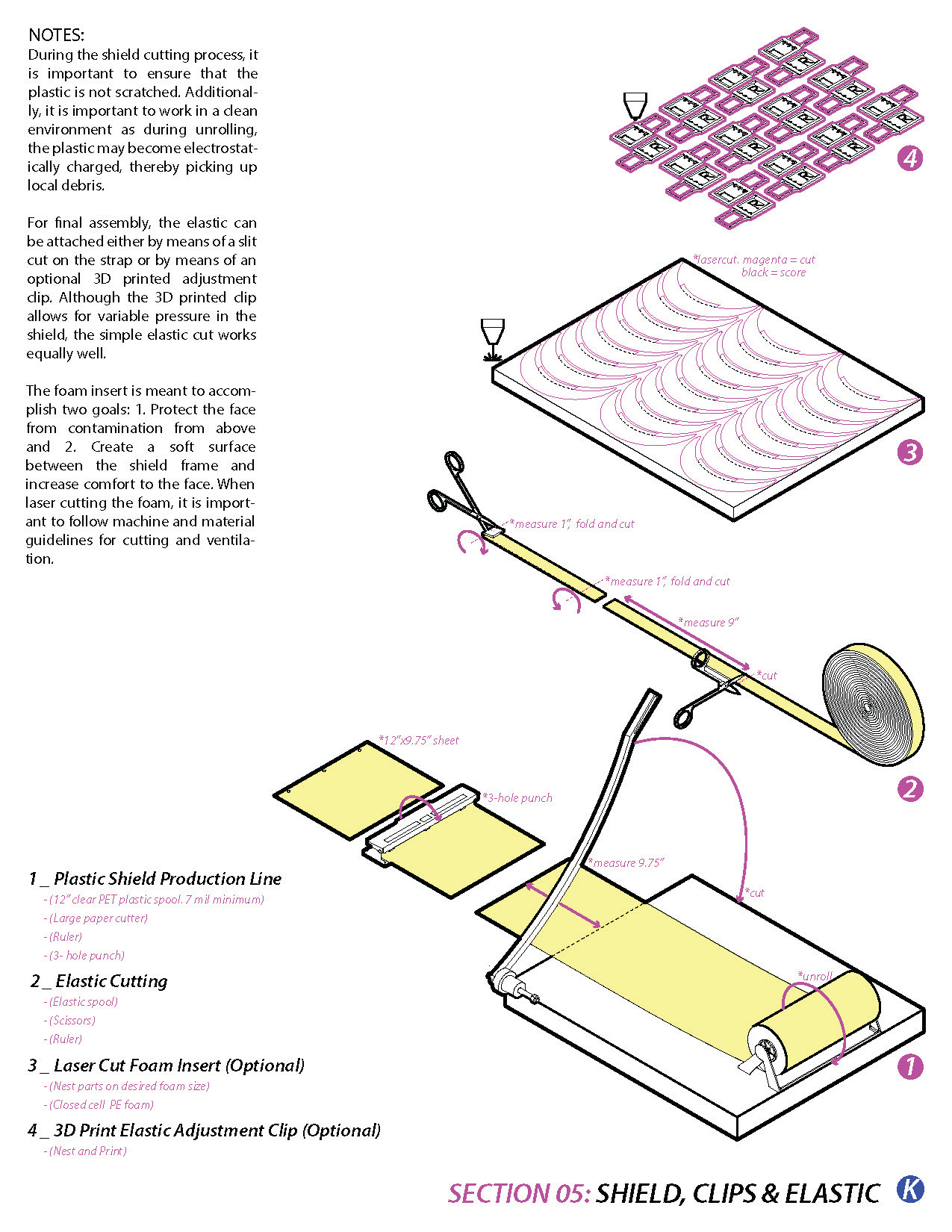

Face Shield Parts. Completed w/ Temple University
